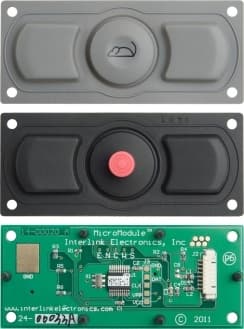

The MicroModule is a finger-actuated "mouse" pointing module that provides complete 360-degree directional control and accurate speed control simultaneously. Users control direction by applying pressure in the direction of the desired movement and adjust the speed by altering the amount of pressure on the device.

MicroModule is ideal for computer cursor control in mobile rugged computers, hardened keyboards, navigation systems, machine control panels, pan and tilt controllers, motion controllers, CNC controllers, and medical control equipment. It's a durable, maintenance-free "miniature" solution that works well in tight spaces and is capable of delivering "mouse" lifetimes of more than 3 million actuations. An integrated sealing rib also makes it possible to seal MicroModule into a system during installation.

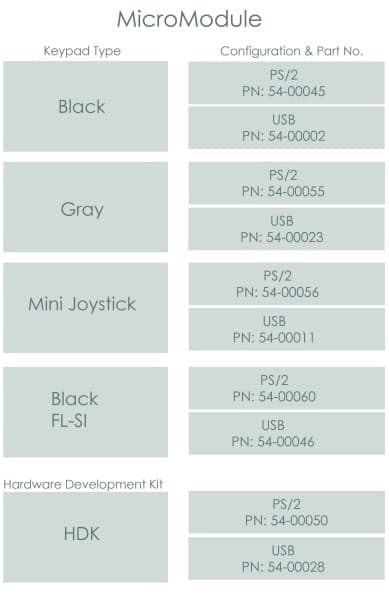

The device is available in either USB or PS/2 versions with three connecting cable options for each. For prolonged exposure to fuels, oils, solvents and aggressive fluids we offer a robust keypad option.

Header Wire & Cable Options
  • Bare wire harness
    PN 14-16576
  • USB type A
    with strain relief
    PN 14-00108
  • USB Type A
    PN 14-00054
