VersaPad HDK

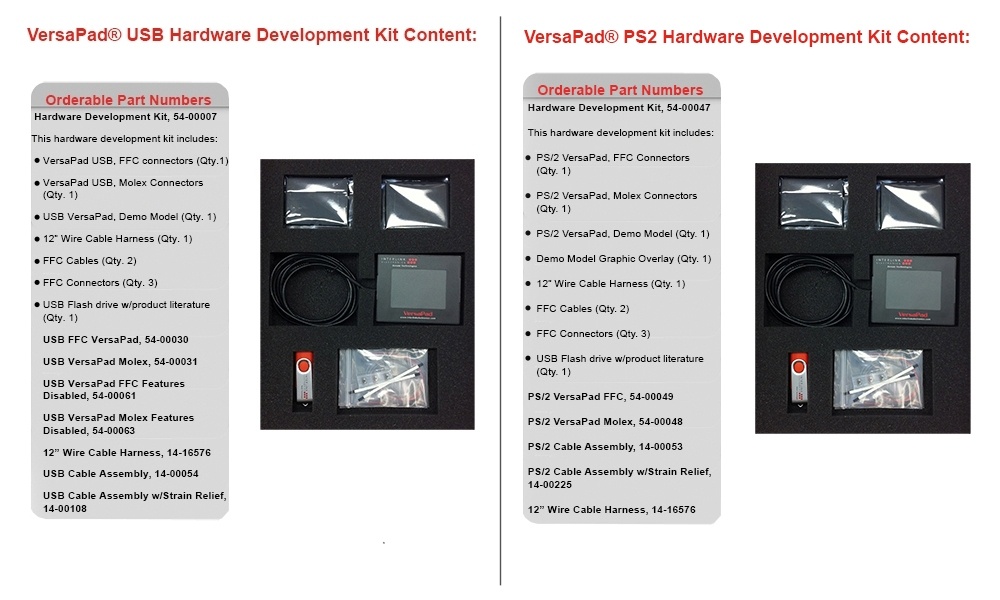

Click image to see HDK contents

The VersaPad HDK (Hardware Development Kit) is the ideal solution to evaluate and understand the capabilities of the rugged VersaPad touchpad technology. It provides all the necessary components for engineers and developers to bring their designs to realization. The touchpad sensor is a four-wire resistive touchpad. The pad is composed of two resistive layers separated by an air gap. One plate is used for the X-axis and the other is used for the Y-axis. When pressure is applied, the two resistive plates make contact. A micro-controller measures position and pressure and then uses advanced, proprietary algorithms to yield smooth mouse functionality. The incorporation of our proprietary FSR technology allows us to use force to provide optimized touchpad performance. The VersaPad a versatile touchpad module intended for integration by OEMs into laptops, military and rugged computers, panel PCs, and medical devices. With smoothness and sensitivity internally enhanced by true pressure measurement, it offers all customary mouse functions—mousing, tapping, dragging, and scrolling. The module's tough, moisture- and grime-resistant surface can be operated with a finger or stylus, even in wet or dirty environments. Plus, it operates over an extended temperature range of -20°C to +60°C.

The VersaPad HDK includes a demo module which can be easily connected to a PC for plug-and-play evaluation. It also includes additional sensor modules in two different connector configurations for engineers to integrate into their own devices using the included guidelines.

AM logo

Also available in AntiMicrobial version.
For more information Click Here
