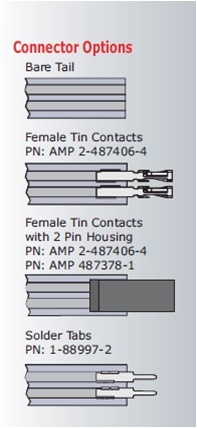

The FSR 400 model is a single-zone Force Sensing Resistor® optimized for use in human touch control of electronic devices such as automotive electronics, medical systems, and in industrial and robotics applications. FSRs are two-wire devices. They are robust polymer thick film (PTF) sensors that exhibit a decrease in resistance with increase in force applied to the surface of the sensor. It has a 5.1mm diameter active area and is available in 4 connection options. Interlink Electronics FSR 400 series is part of the single-zone Force Sensing Resistor family.

Features and Benefits

  • Actuation force as low as 0.1N and sensitivity range to 20N
  • Easily customizable to a wide range of sizes
  • Cost effective
  • Ultra thin
  • Robust: Up to 10 million actuations
  • Simple and easy to integrate

Applications

  • Detect & Qualify Press
    Sense whether a touch is accidental or intended, by reading force
  • Use force for UI feedback
    Detect more or less user force, to make a more intuitive interface
  • Enhance tool safety
    Differentiate a grip from a touch, as a safety lock
  • Find centroid of force
    Use multiple sensors to determine centroid of force
  • Detect presence, position or motion
    of a person or patient in a bed, chair or medical device
  • Detect liquid blockage
    Detect tube or pump occlusion or blockage by measuring back pressure
  • Many other force change detection applications
FSR 400 Force Sensing Resistor
